The JATCO Vertical Panel
The JATCO Vertical Panel BTEX Systems are natural draft air cooled condensing systems used to capture and recycle BTEX and VOC vapors from the dehydrator still column.
Condensed liquids are collected in the skid mounted JATCO Environmental Tank, and then automatically transferred to storage.
The non-condensable vapors can be destroyed in the following ways:
- Eliminator Package – the vapors are routed to the reboiler for destruction.
- Vent to Combustor
- Vent to Flare
- Vent to VRU
- Vent to Thermal Oxidizer
*Ask us about our partnership with Cimarron Energy.
This closed-loop system is an ideal pollution control system, as it eliminates BTEX and VOC vapor emissions, aiding in pollution prevention, but will also pay for itself by generating revenue from condensate recovery.

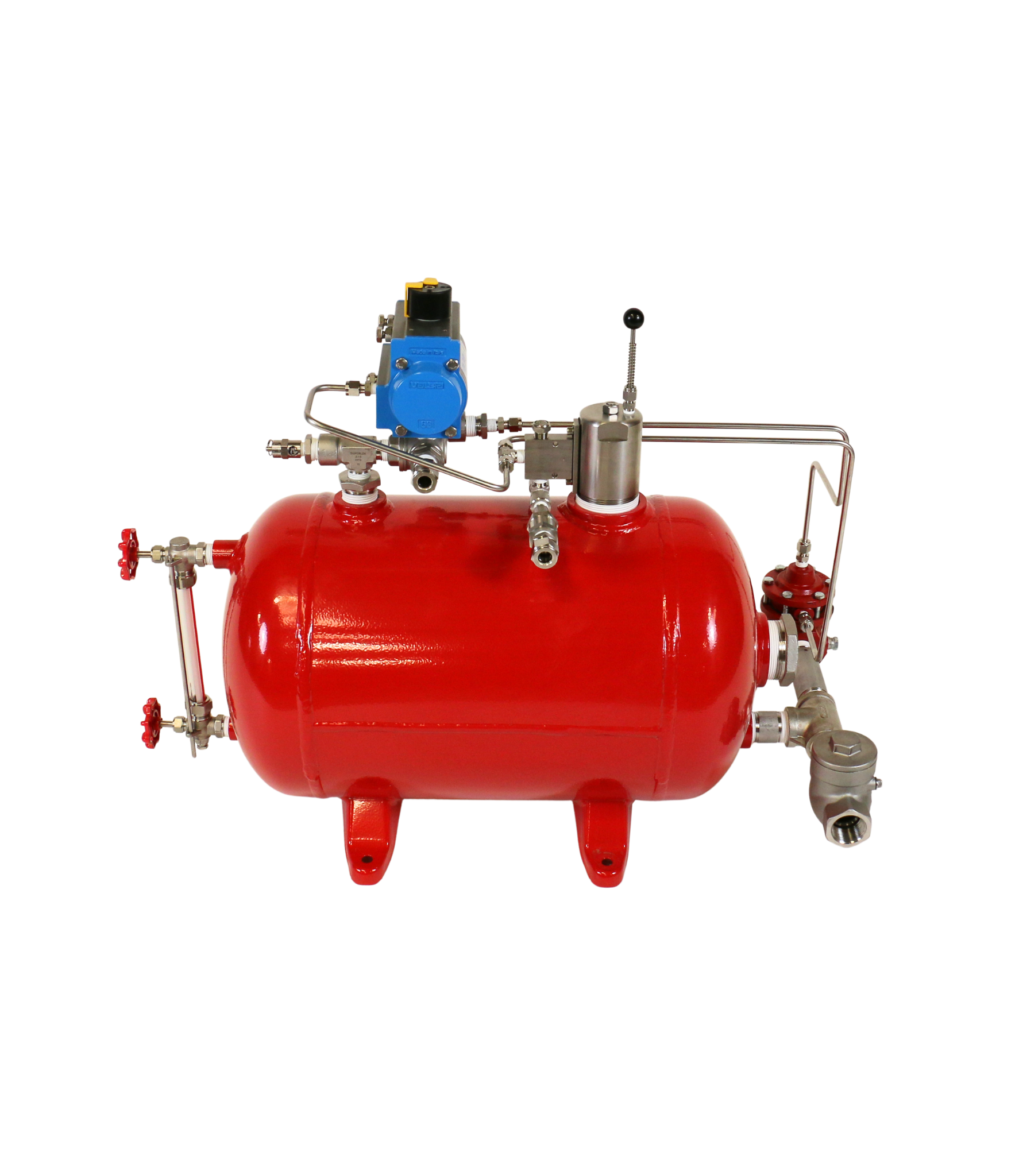

The Vertical Panel BTEX Systems standard parts include a JATCO J-5000 10 gallon Environmental Tank that moves at 310 GPH. The tank blowdown vapor is now reabsorbed into the BTEX System through a diffuser to help ensure emissions compliance. It also comes with a 32 oz. vapor relief valve with a 0-40 oz. gauge and a high liquid level shutdown assembly. Stainless steel is used for all condenser materials and plumbing with automatic control valves for hands free operation and manual valves for easy start up and shut down procedures.

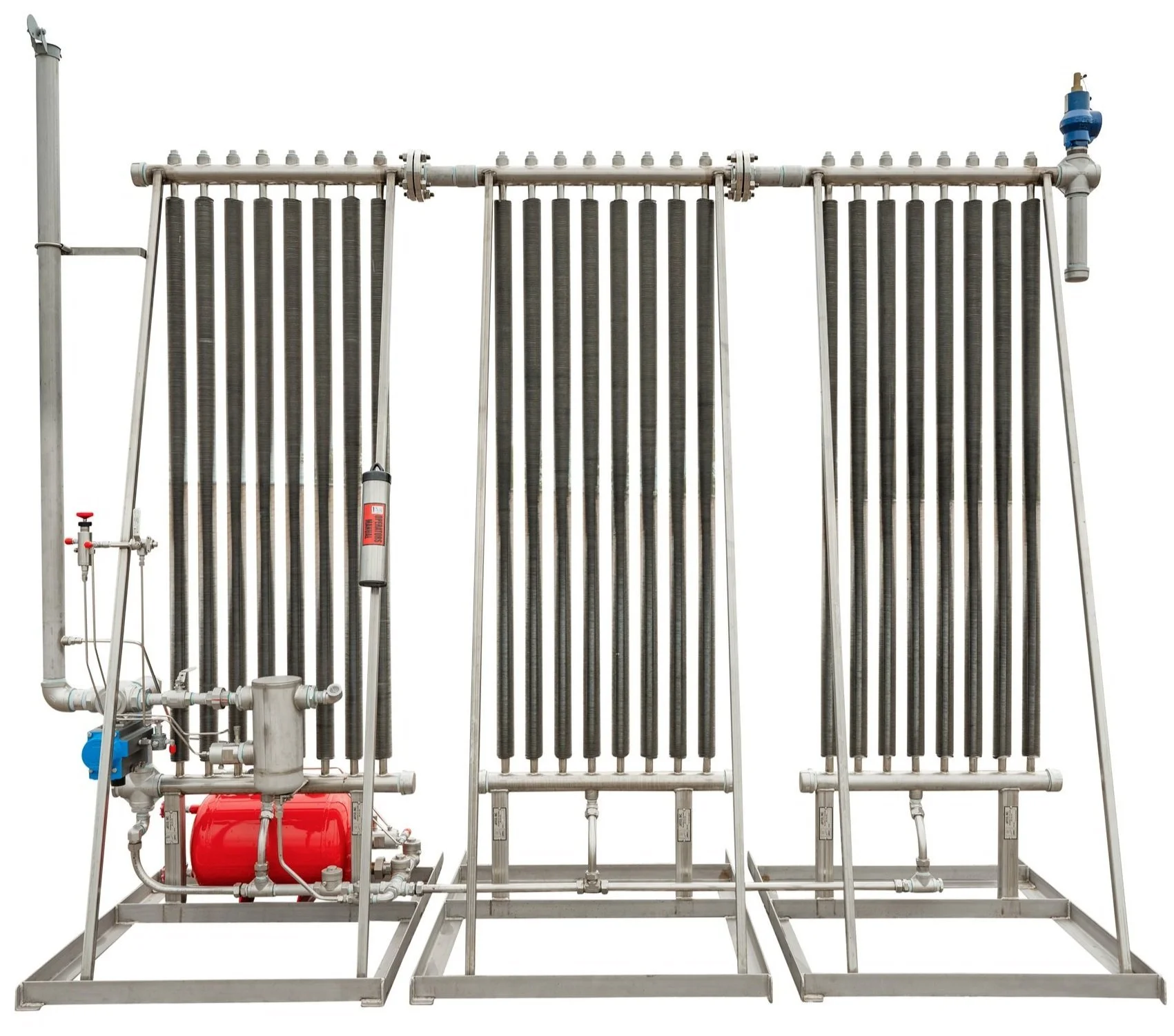

Due to our modular design, additional add-on panels can be easily added to increase cooling capacity, but only up to a System III which consists of a single base unit and two add-on panels. The ability to recapture tank blowdown vapors can also easily be integrated into existing equipment.
The benefits of our BTEX Systems:
- Low initial cost
- Prevents venting of BTEX and VOCs
- Recovers fugitive condensates for resale
- Uses residual VOC vapors for reboiler burner fuel
- Pneumatic and electric options
- Easy to install
*Electric Options Available
(Please Call for more details)
Manuals
- Vertical Panel BTEX Eliminator System I
- Vertical Panel BTEX Eliminator System II
- Vertical Panel BTEX Eliminator System III
Technical Specs
Drawings
Our J-5000 Tanks

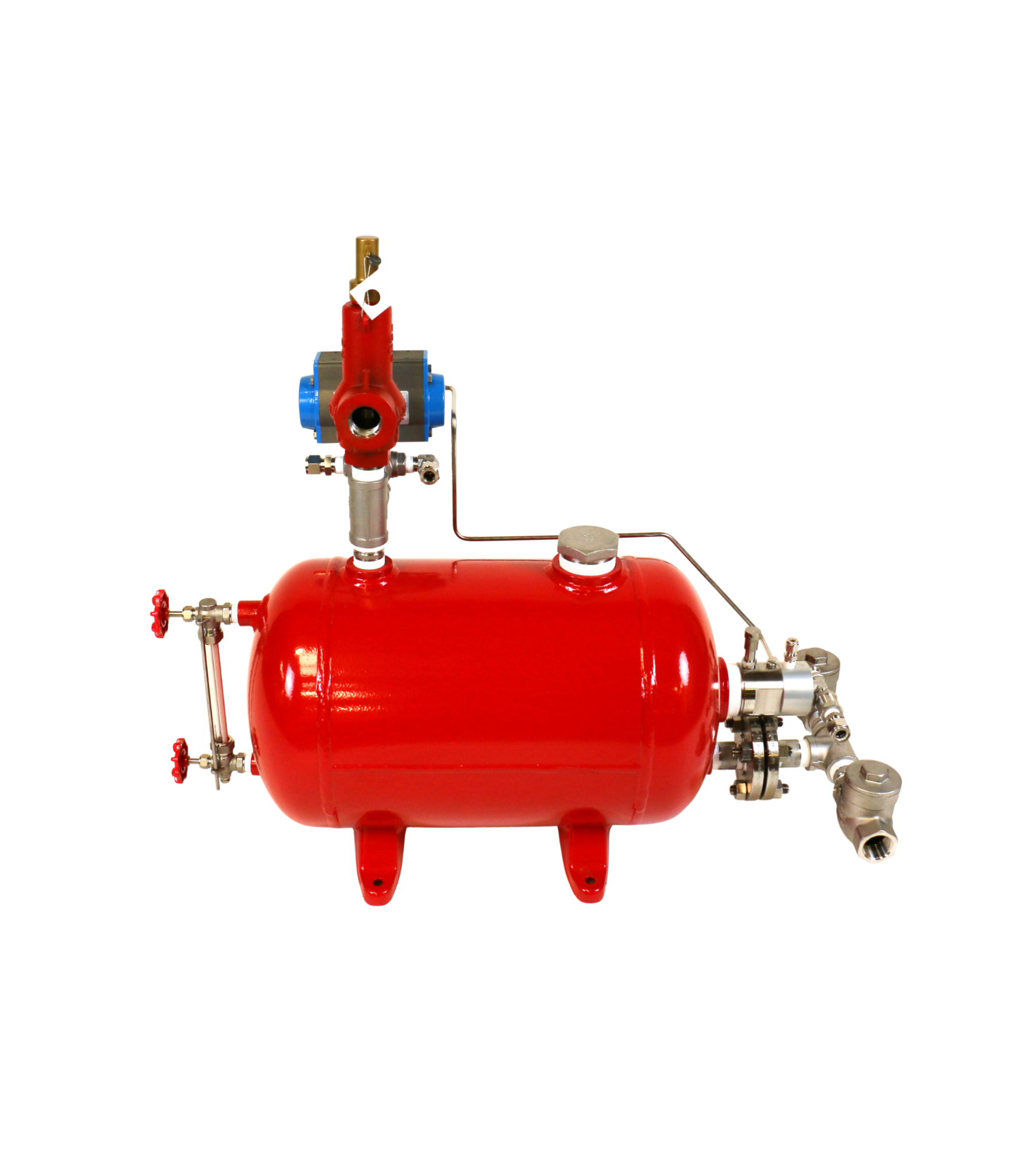

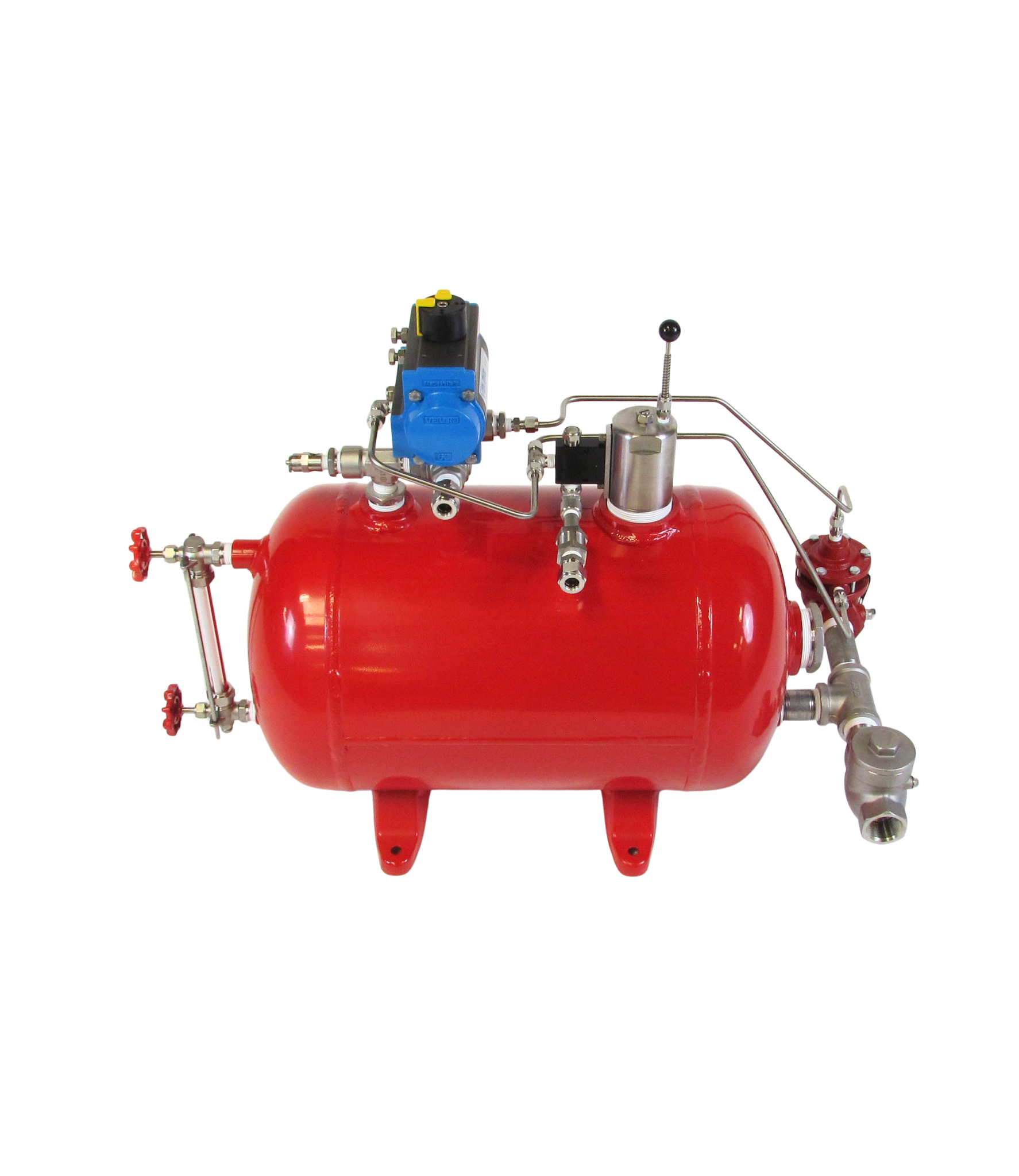

Side Mount Pneumatic Level Controller 100 psi Actuated Ball Valve Vertical Panel

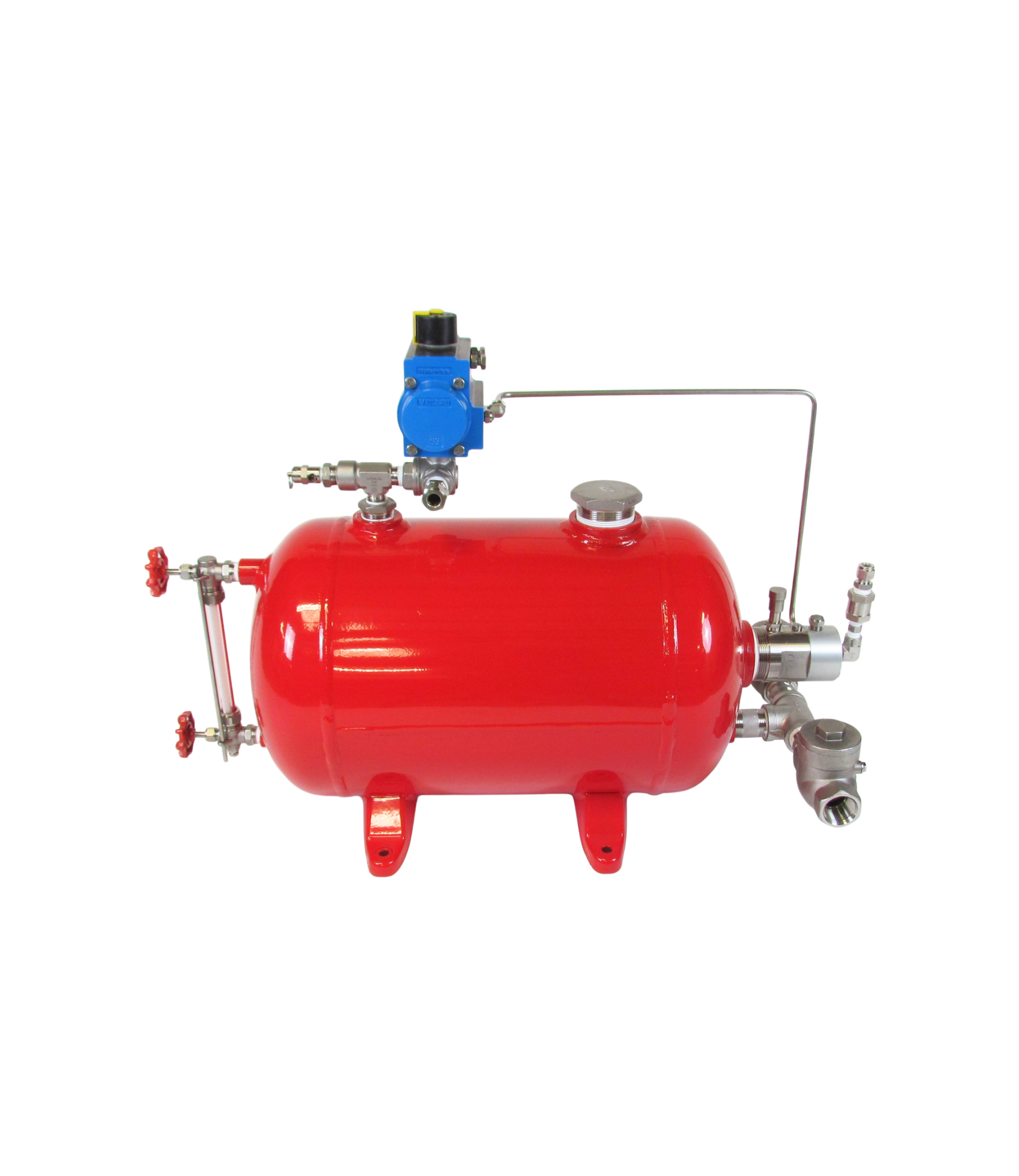

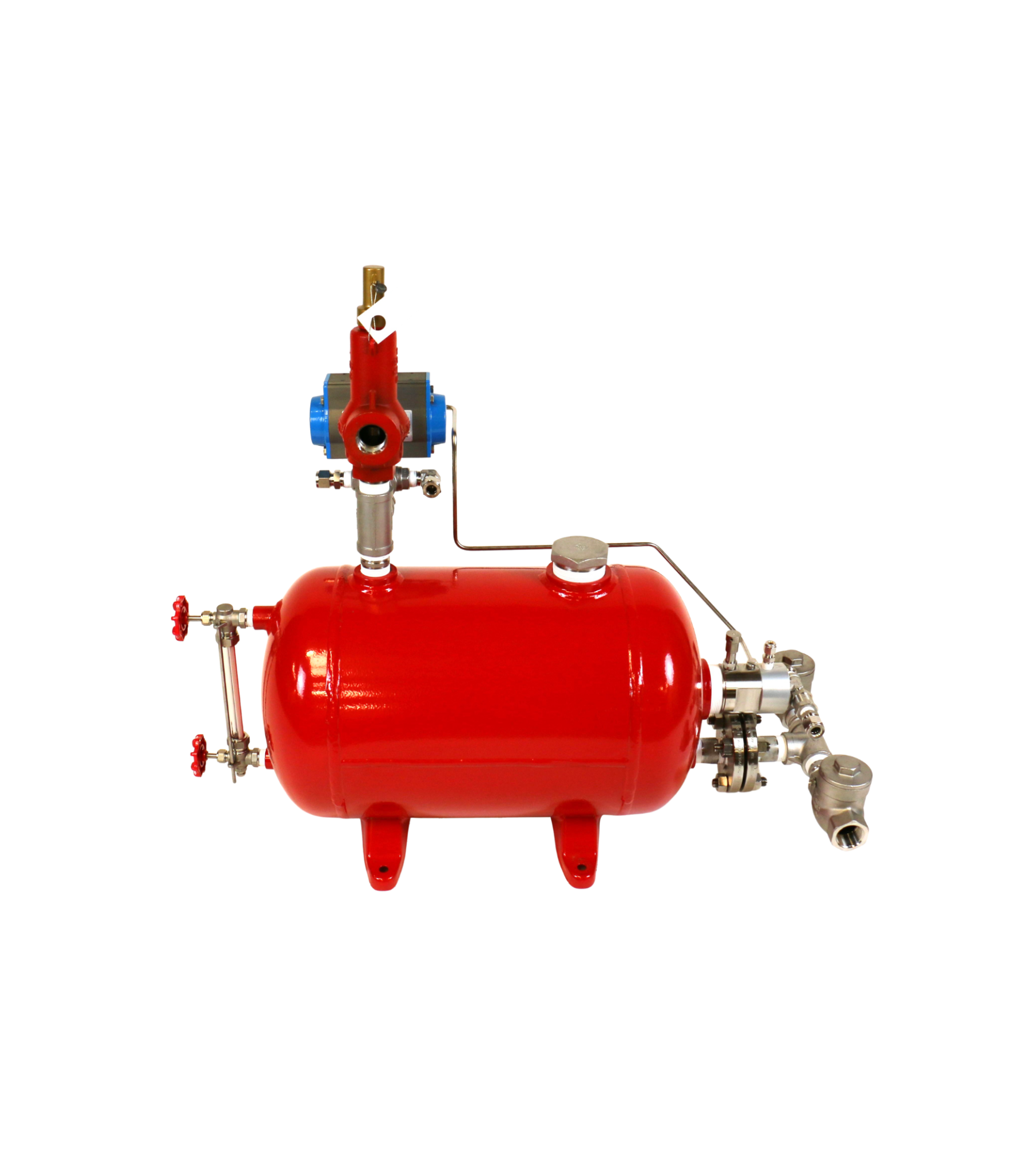

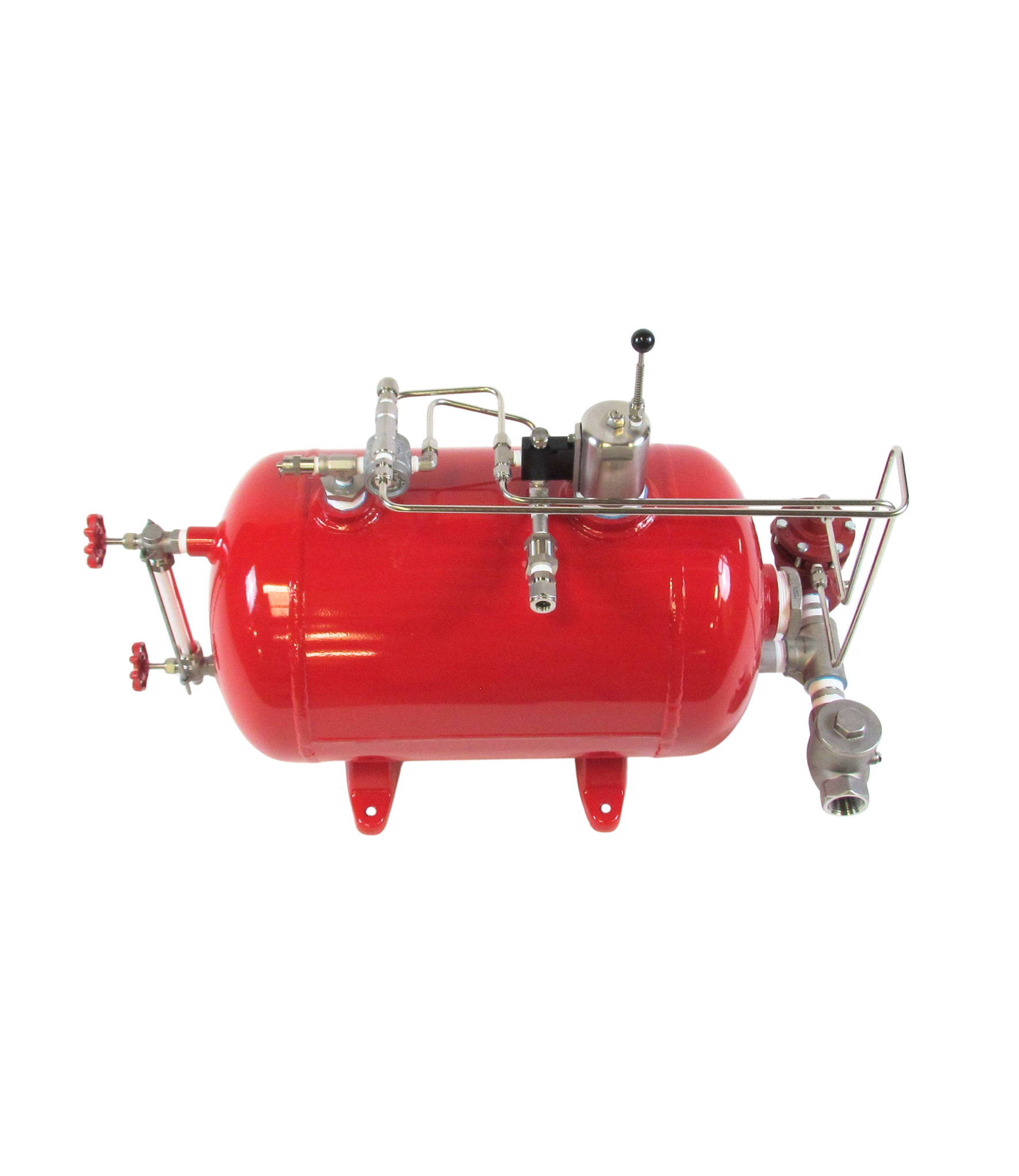

Side Mount Pneumatic Level Controller 200 psi Actuated Ball Valve Vertical Panel

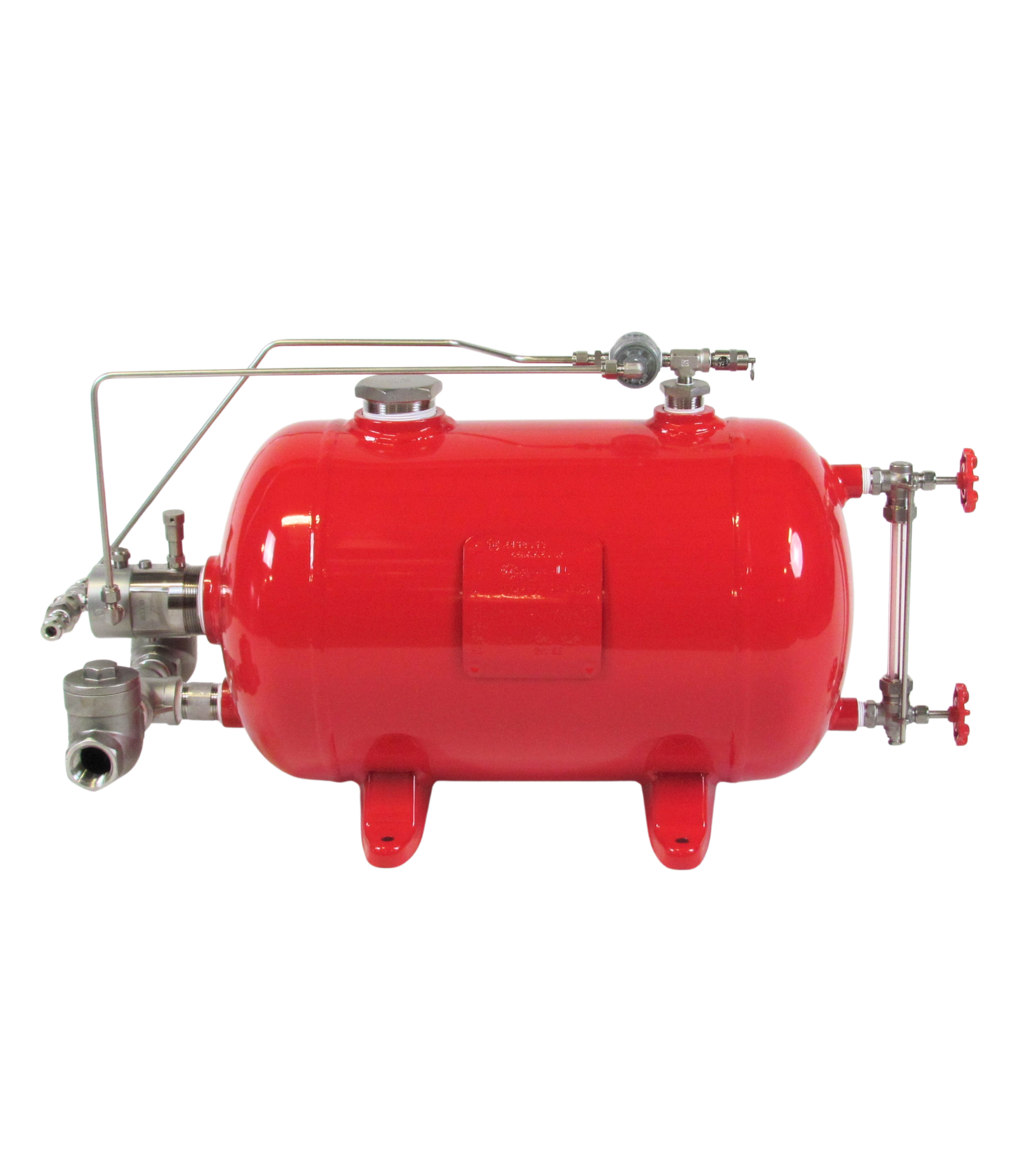

Side Mount Pneumatic Level Controller 100 psi Actuated Ball Valve Shell & Tube
Side Mount Pneumatic Level Controller 200 psi Actuated Ball Valve Shell & Tube

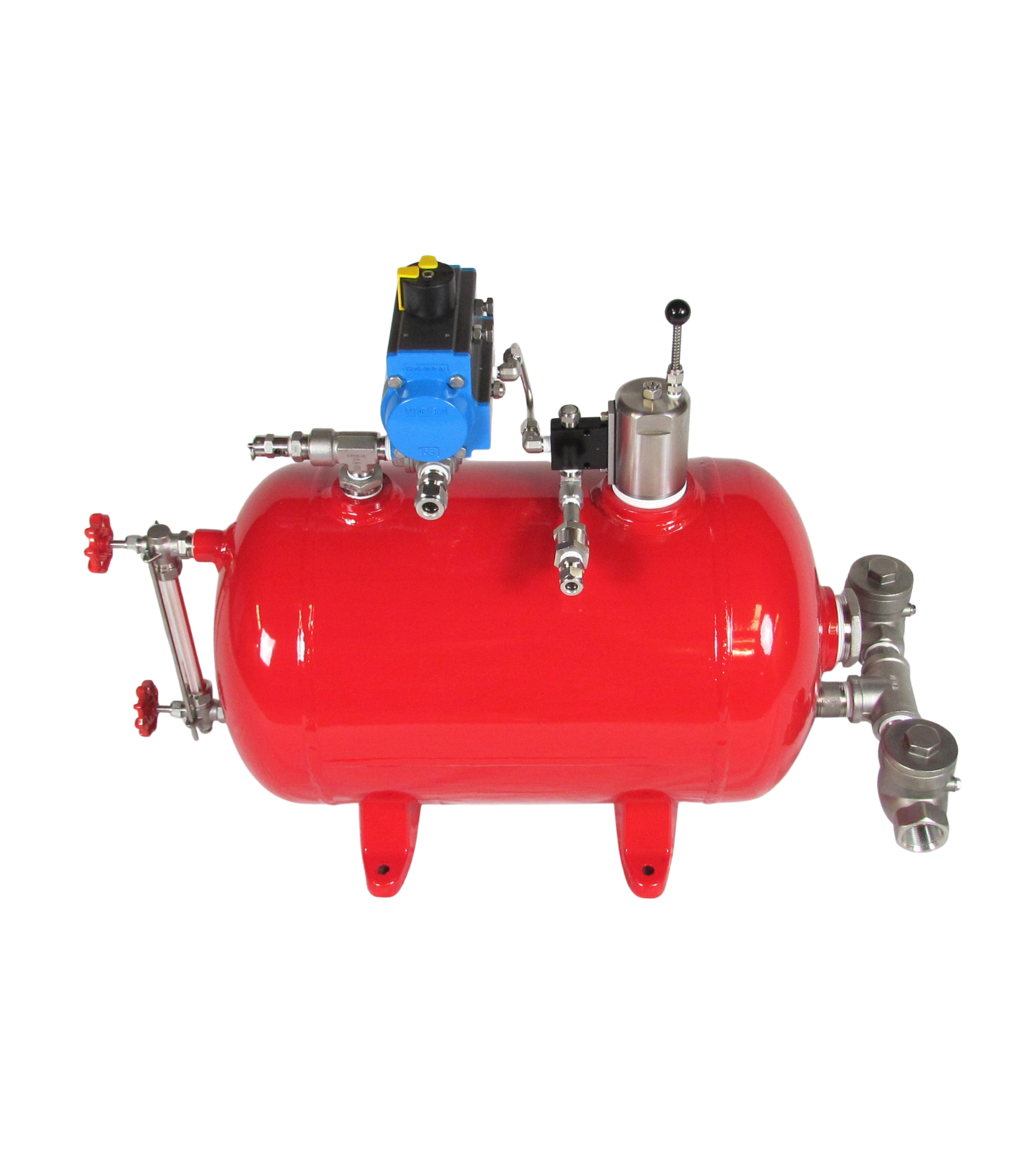

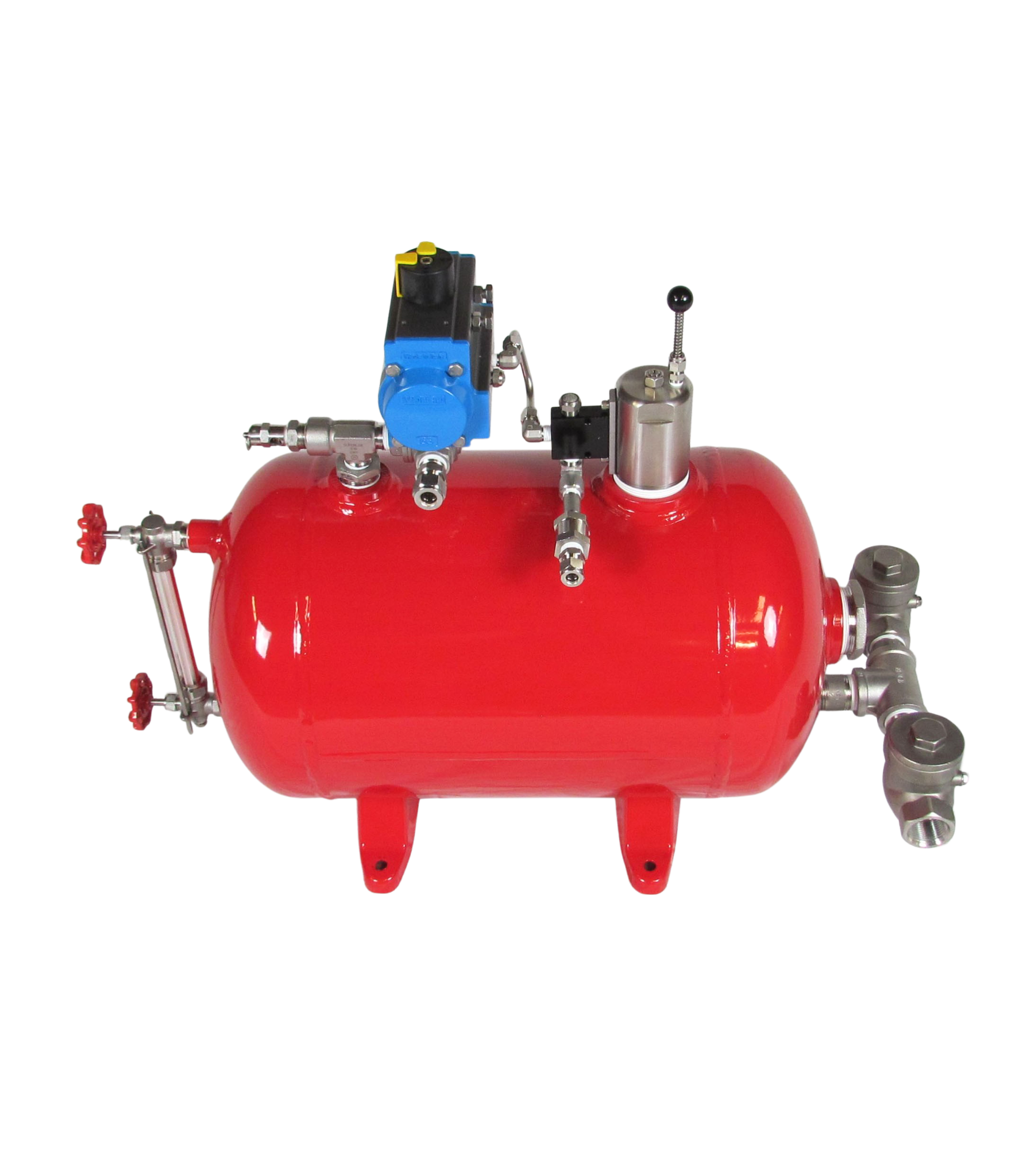

Vacuum Service Side Mount Pneumatic Level Controller 100 psi Actuated Ball Valve

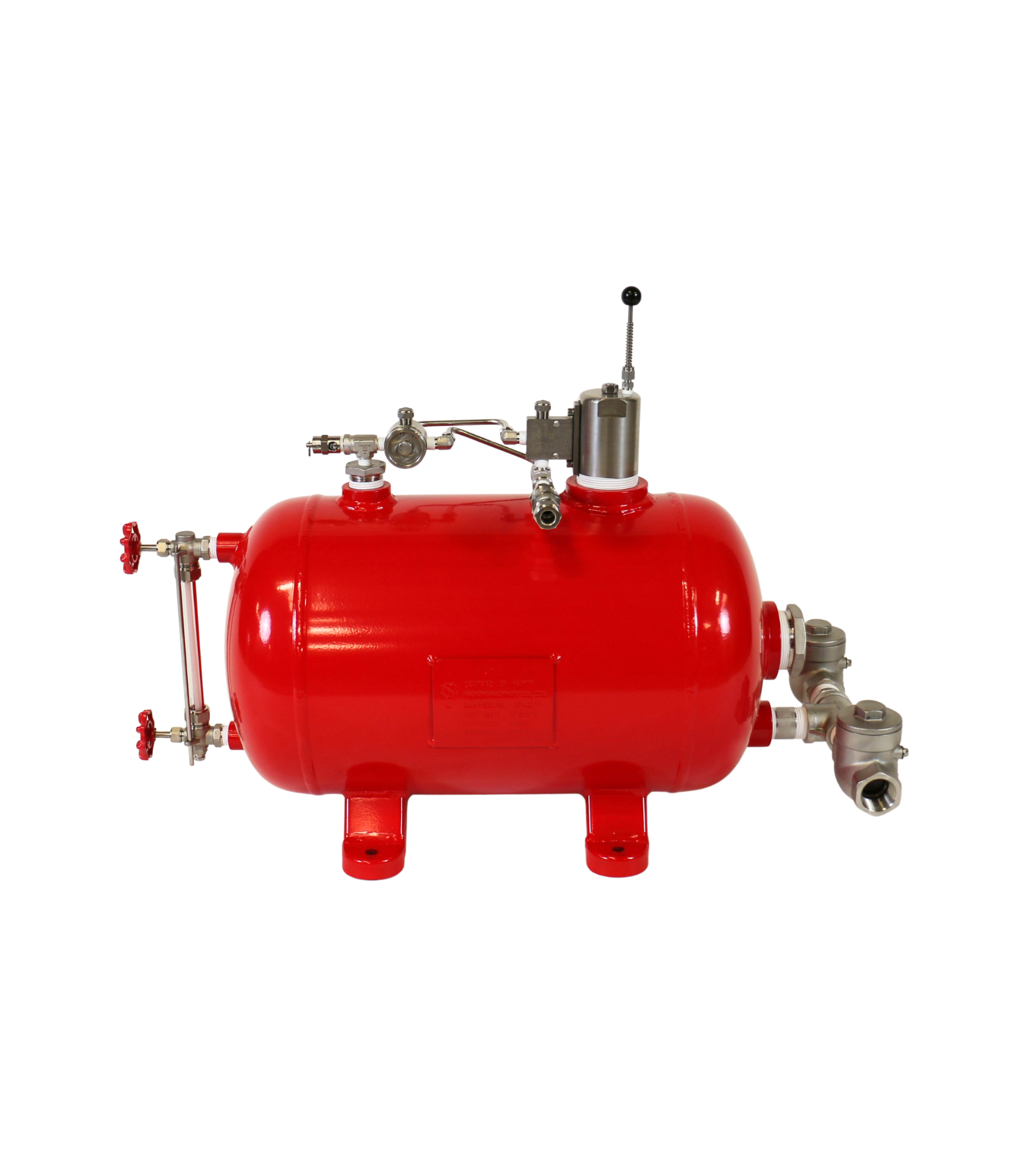

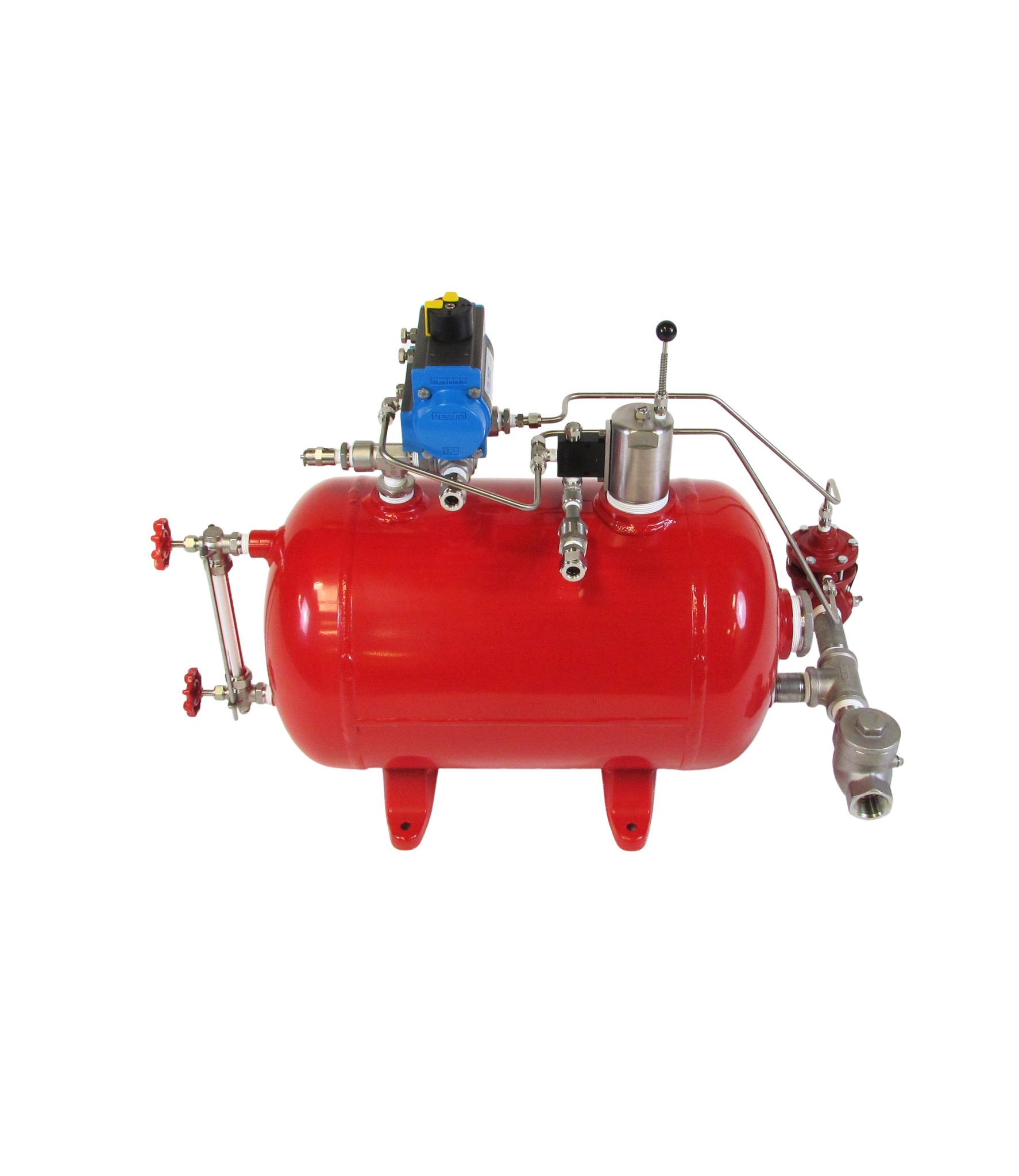

Vacuum Service Side Mount Pneumatic Level Controller 200 psi Actuated Ball Valve
Side Mount Electric Level Controller 100 psi Actuated Ball Valve w/ Electric Pneumatic Solenoid

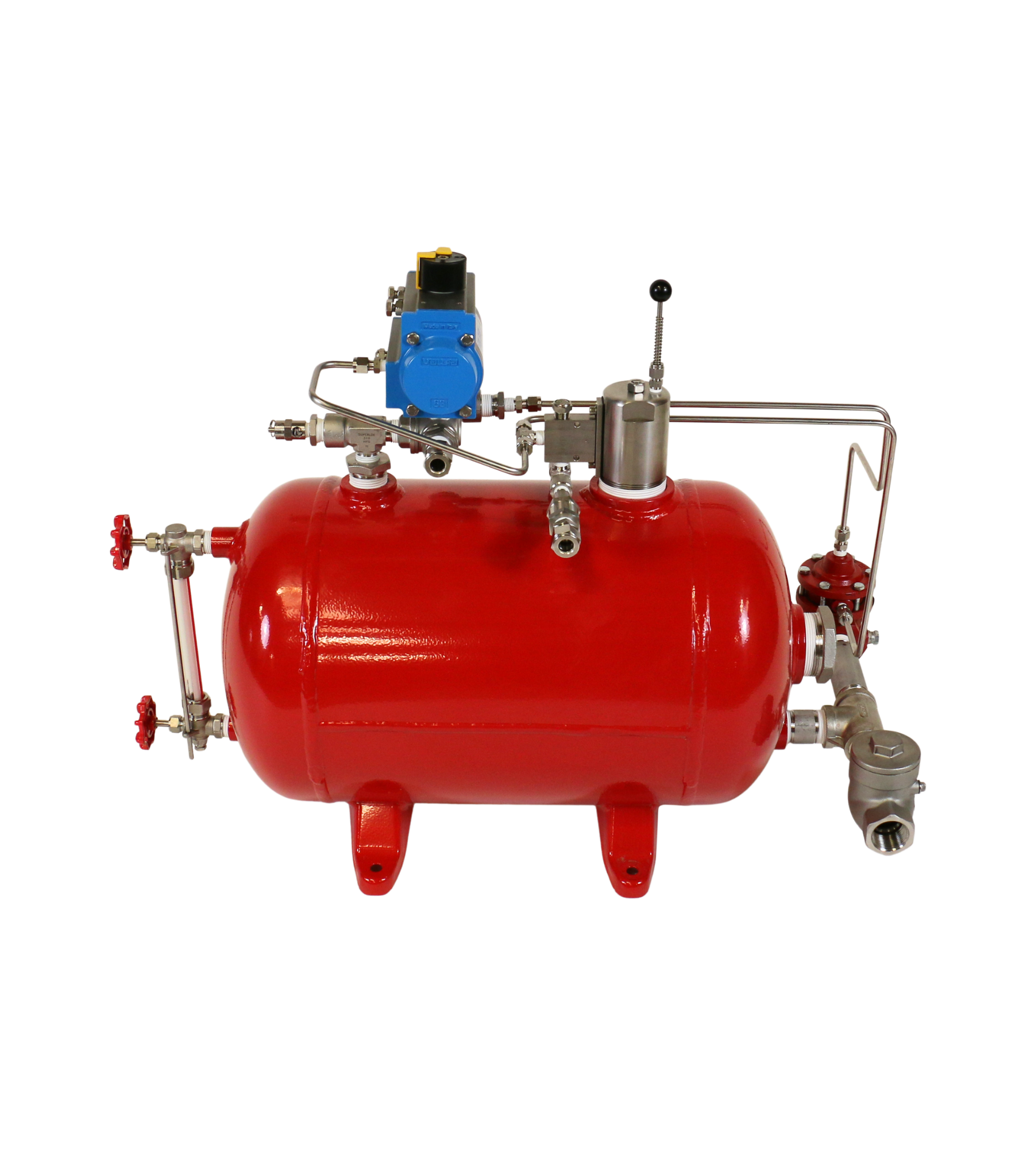

Side Mount Electric Level Controller 200 psi Actuated Ball Valve w/ Electric Pneumatic Solenoid
